IDule

Home

> 제품소개 > Camera > IDule

Camera Link iPokr

COLOR

Color

B/W(Mono)

RESOLUTION

VGA	2M	3M
5M	4M	8M
12M	65M	25M
50M	SXGA	SXGAx2

SENSOR SIZE

1/3" CMOS	2/3" CMOS	1" CMOS
28.16 CMOS	4/3" CMOS	37.361mmD
1.1(D18.1) CMOS	45.717 CMOS	1/1.8 " CMOS

FRAME RATE

480fps	280fps	340fps
150fps	180fps	42fps
70fps	9.4(8tap)	22.6(8tap)
15 fps	54fps	35fps
56fps

재품 목록
Model		COLOR	RESOLUTION	SENSOR SIZE	FRAME RATE	PIXEL CLOCK

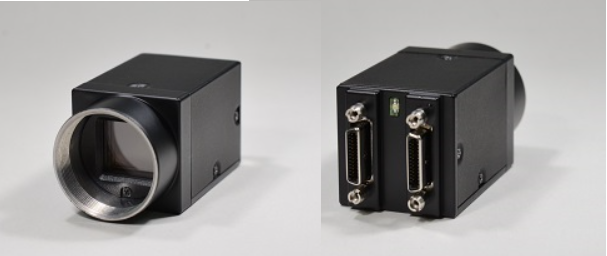

	ID03MB-CL	B/W(Mono)	VGA(648X480)	1/3" CMOS	480fps	80MHz
	ID03MC-CL	Color	VGA(648X480)	1/3" CMOS	480fps	80MHz
	ID2MB-CL	B/W(Mono)	2M(2048X1088)	2/3" CMOS	280fps	80MHz
	ID2MB-CLD	B/W(Mono)	2M(2048X1088)	2/3" CMOS	340fps	76.8MHz
	ID2MC-CL	Color	2M(2048X1088)	2/3" CMOS	280fps	80MHz
	ID2MC-CLD	Color	2M(2048X1088)	2/3" CMOS	340fps	76.8MHz
	ID4MB-CL	B/W(Mono)	4M(2048X2048)	1" CMOS	150fps	80MHz
	ID4MB-CLD	B/W(Mono)	4M(2048X2048)	1" CMOS	180fps	76.8MHz
	ID4MC-CL	Color	4M(2048X2048)	1" CMOS	150fps	80MHz
	ID4MC-CLD	Color	4M(2048X2048)	1" CMOS	180fps	76.8MHz

처음페이지 1 2 3 마지막페이지
